Ht36 CNC Lathe Machine
Ht36 CNC Lathe Machine
Description
Basic Info.
| Model NO. | HT36X400 |
| Spindle Motor | Siemens Spindle Servo Motor |
| Turret | Electric Turret - 6 Station (20X20mm) |
| Max. Swing Over Cross Slide | Φ180mm |
| Distance Between Centers | 400mm |
| Max. Swing Over Bed | Φ350mm |
| Controller | Siemens808d16 Ver |
| Transport Package | Wooden Case |
| Specification | 2.73x2.00*2.20M |
| Trademark | ZINO |
| Origin | Jiangsu Province |
| HS Code | 8458110090 |
| Production Capacity | 200 Pieces / Year |
Product Description
| FEATURES | |||
| * 4 shafts linkage Turning and Milling CNC Lathe Machine | |||
| * One piece base and bed wholly ensures high rigidity of the machine | |||
| * Taiwan brand high precision linear guide ensure positioning accuracy more stable | |||
| * Adaptable to various control systems such as GSK, Siemens, Fanuc |
| MODEL | HT36 - Turning and Milling Machine | ||
| Distance between centers | 250mm | 300mm | 400mm |
| Max. swing over bed | Φ350mm | ||
| Max. swing over cross slide | Φ180mm | ||
| Width of bed | 350mm | ||
| Spindle | |||
| Spindle speed range | 150-2500rpm | ||
| Spindle bore | 60mm (48 AFTER Hydraulic chuck) | ||
| Spindle nose | A2-6 | ||
| Taper of spindle bore | MT6 | ||
| Stroke & Feeding Speed | |||
| X axis travel | 350mm | ||
| Z axis travel | 250mm | 300mm | 400mm |
| X/Z axis Rapid traverse | 10/12 m/min | ||
| Chuck | |||
| Type | Hydraulic collect chuck | ||
| Collect chuck Number | 4 | ||
| Turret | |||
| Type | Electric turret- (supporting coolant) | ||
| Tool station number | 6 | ||
| Tool holder | 20x20mm | ||
| Living Tool | |||
| Type | 2x2 living tool with Y axis | ||
| Living Tool motor | SIEMENS servo motor | ||
| Y Axis motor | SIEMENS servo motor | ||
| Tailstock Sleeve | |||
| Motor | |||
| Spindle motor type | SIEMENS Spindle servo motor | ||
| Spindle motor power | 5.5 KW | ||
| X/Z feed motor type | SIEMENS motor | ||
| X/Z feed motor power | 1.2 / 2 KW | ||
| Coolant pump power | 200W | ||
| Machine Dimensions | |||
| Overall dimension(L×W×H) | 1880 x1400x1620mm | 1950 x1400x1620mm | 2050 x1400x1620mm |
| Packing size(L×W×H) | 2050 x1650x1880mm | 2120 x1650x1880mm | 2220 x1650x1880mm |
| Net/Gross weight | 1500/1700kg | 1600/1800kg | 1800/2000kg |

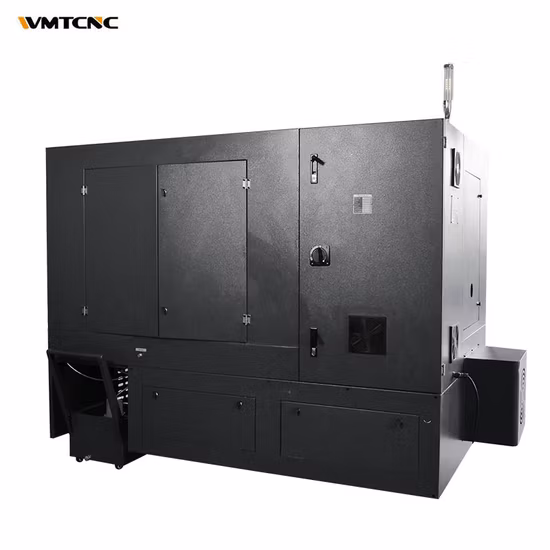

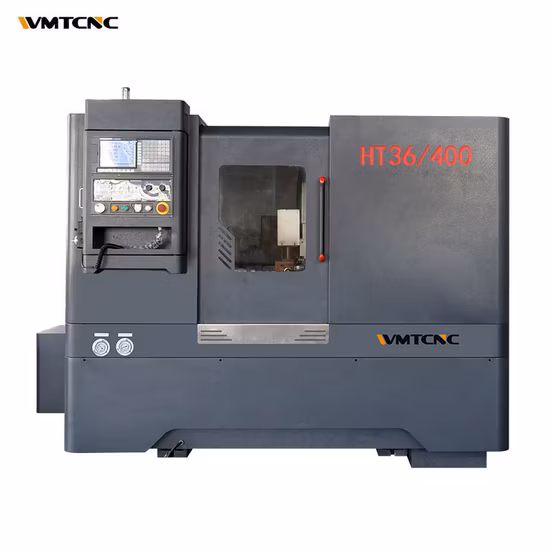

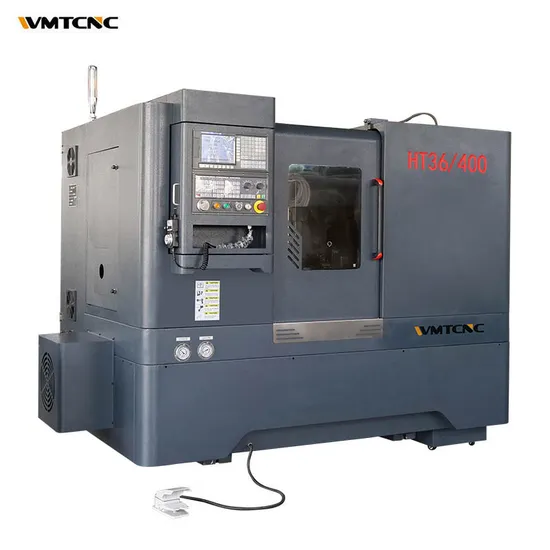

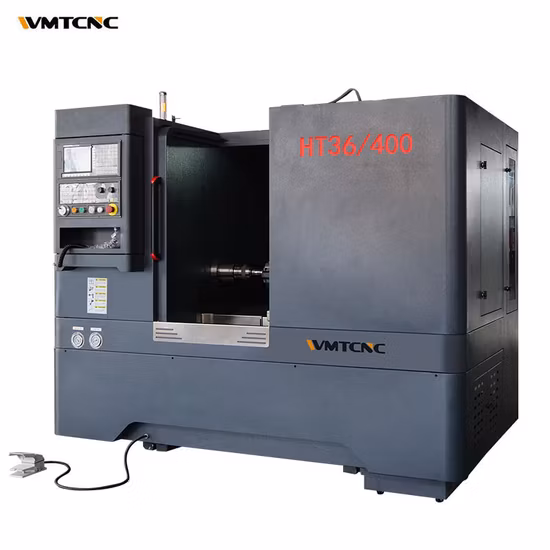

| Machine Pictures |
| FAG |
| •Q1. How can I get a quotation? |
| Leave us message with your purchase requirements and we will reply you ASAP. |
| And you may contact us directly by Telephone. +86 18501566670 |
| •Q2. Can you provide customized machine or SPM (Special purpose machine)? |
| Yes, we provide smart CNC solutions for our customer, in order to increase efficiency. |
| •Q3. Can you provide training for operation CNC machines? |
| Yes, free training in our factory is available. |
| •Q4. How about your price? |
| Send me details about what you need, you will get the best price in China. |
| •Q5. What's your warranty terms? |
| We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine's bill of lading date. Extended warranty is available at the time of purchase. |
| •Q6. What's the delivery time, and what's the package? |
| Normally the delivery time is about 30-45 days. All our Lathe machines are packed with sea worthy package |
